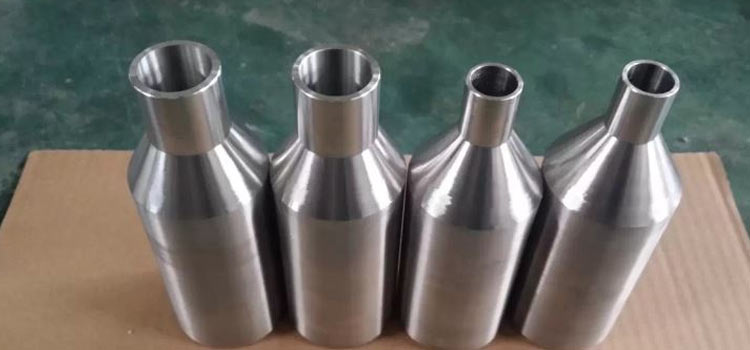

SWAGE NIPPLES, CONCENTRIC SWAGE, ECCENTRIC SWAGE, NPT/BSPT THREADED SWAGE NIPPLES MANUFACTURER MSS-SP-95 STANDARD, ASME B16.11, BS 3799, ASTM A105, A350-LF2, A106, A312, A234, A403, A182 (F304/304L, F316/316L) HIGH QUALITY STAINLESS STEEL SWAGE NIPPLES, CARBON STEEL/ALLOY STEEL SWAGE NIPPLES MANUFACTURER IN INDIA
Multi Metal Corporation is a leading manufacturer, exporter and supplier of stainless steel bends, carbon steel bends, and alloy steel bends in a complete range of radius and diameters. Steel pipe bends can be manufactured from a wide range of pipe materials – including low and high yield carbon steels, alloy steels, stainless steels, Cr-Ni alloys and titanium. We specialise in the manufacture of large and small size stainless steel bends and piggable bends in grades Duplex, 310S, 304L, 316L, 317L, 347, 321, 904L.
Concentri Swage, Eccentric Swage, NPT Threaded Swage Nipples, BSPT Threaded Swage Nipples, Line Pipe Swages, Swage Nipple Suppliers in India, Threaded Swage Nipples, Swage Nipple Exporters, Concentric Swage Nipple, Eccentric Swage Nipples, Swaged Nipple Suppliers, Stainless Steel Socket Weld Swage Nipple, A105N Swage Nipples, A182 Swage Nipples,Stainless Steel 304 Swage Nipples, Stainless Steel 316 Swage Nipples, Inconel Swage Nipples, Monel Swage Nipples, Hastelloy Swage Nipples, Swage Nipples with Threaded Ends, Swage Nipples with Plain Ends, Swage Nipples with Bevel Ends, Hot Dip Galvanized Swages
All swage nipples manufactured by Multi Metal Corporation are either manufactured from seamless pipe or bar material and have suitable working pressure equivalent to straight seamless pipes. We use high quality raw materials (steel pipes, bar stock) for Manufacturing stainless steel swage nipples and carbon steel swage nipples. The raw materials we use are fully traceable to the mill source through our MTR reports. Our products are manufactured as per customer specifications and in accordance with international standards including American Standard (ASTM/ANSI), the British Standard (BS), and the DIN/European standard. NPT threads on Swage Nipples conform to ANSI/ASME B1.20.1.
Swage Nipples Production Range, Specifications – Stainless Steel, Carbon Steel, Alloy Steel Swage Nipples
| Size | 1/8” to 8”, DN8 to DN200 |
| Type | Concentric Swage Nipples, Eccentric Swage Nipples |
| Dimensions | MSS SP-95-2006, BS 3799 |
| Raw Materials | A106 Gr. B Seamless Pipes, A105/A105N Bars, A182 304/304L Bars, A182 316/316L Bars, A312 304/304L Seamless Pipes, Duplex Seamless Pipes, A312 316/316L Seamless Pipes, A350-LF2, Alloy Steel Seamless Pipes/Bars |
| Material Specifications | ASTM A105, A350 LF2, ASTM A182 (F304,F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,F91) |
| Connection Ends | PBE: Plain both ends, BBE: Bevel both ends, TBE: Thread both ends PSE: Plain small end, BSE: Bevel small end, TSE: Thread small end PLE: Plain large end, BLE: Bevel large end, TLE: Thread large end Thickness: Standard, Extra Heavy, Schedule 160, or Double Extra Heavy |
| Ends | Beveled, Square Cut (for socket-weld), NPT/BSPT/BSP Threaded Swages, Customer Specification |
| Test Certificates | EN 10204 3.1, Raw Material Certificates Available, Destructive & Non Destructive Testing (NDT) Reports from NABL Approved Labs |
| Material Finish | Electro-Galvanized Coating, Black Finish, Blackodising Finish, Sand Blasting, or Pickled Finish in case of Stainless Steel Swage Nipples |
Quality Assurance – Swage Nipples
At Multi Metal Corporation , all swage nipples are tested and are subject to strict inspection at each stage of the production process, from raw material purchasing to product dispatch. All raw material used in the manufacture of swage nipples are tested to ensure compliance with international standards and customer requirements.
Testing and Inspection of Swage Nipples:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection, Buyer Inspection
