ASME/ANSI B16.5 SOCKET WELDING FLANGES MANUFACTURER IN INDIA MANUFACTURER/EXPORTER OF HIGH QUALITY SOCKET WELDING FLANGES CARBON, ALLOY, STAINLESS STEEL SOCKET WELD FLANGES
Multi Metal Corporation is a leading manufacturer, exporter and supplier of stainless steel bends, carbon steel bends, and alloy steel bends in a complete range of radius and diameters. Steel pipe bends can be manufactured from a wide range of pipe materials – including low and high yield carbon steels, alloy steels, stainless steels, Cr-Ni alloys and titanium. We specialise in the manufacture of large and small size stainless steel bends and piggable bends in grades Duplex, 310S, 304L, 316L, 317L, 347, 321, 904L.

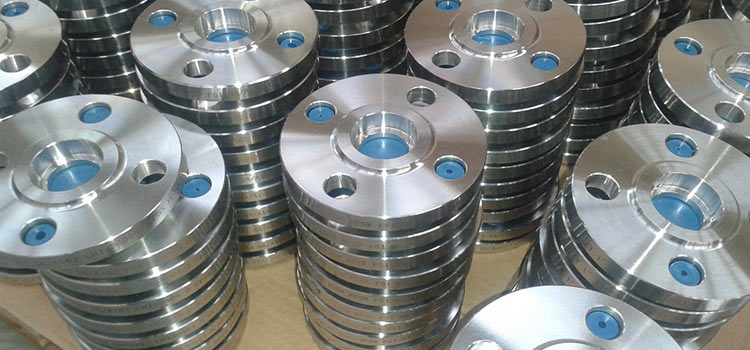

Socket weld flange is similar to the slip-on flange in outline, but the bore is counter-bored to accept pipe. Socket welding pipe flanges are typically used on smaller sizes of high pressure pipes. Socket weld flanges are widely used in high pressure systems such as hydraulic equipment and steam lines. Socket weld pipe flanges are attached by inserting the pipe into the socket end and then applying fillet weld around the hub of the flange. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe. An optional internal weld may be applied in high stress applications.
We offer socket welding flanges manufactured at our facility to companies in various industries including shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants and turnkey projects among others.
Slip-on Flange, SO Forged Flanges Production Range
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Socket Welding Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Socket Welding Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Socket Welding Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Socket Welding Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
Quality Assurance
At Multi Metal Corporation, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
