Level Wound Coil (LWC) Copper Tubes

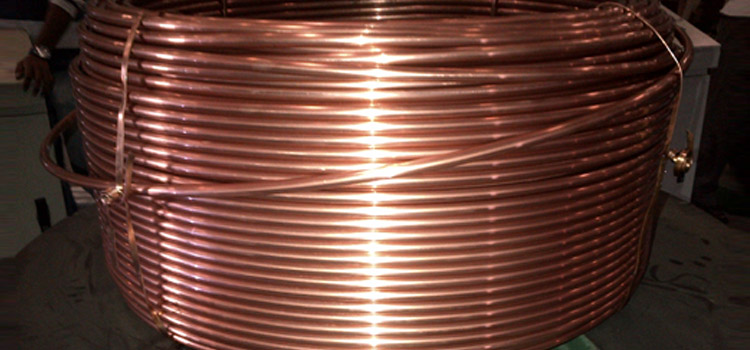

Level Wound Coil (LWC) Copper Tubes The Level Wound Coil (LWC) Copper Tubes is one of our imported & supplied products. All LWC tubes are normally produced according to ASTM & Coproclima specifications. These specifications were prepared to take account of the requirements of ACR industry. Each millimetre of tubes is 100% Eddy-Current tested and any surface defects found will be clearly marked by black colour. For heavy coils, we wound LWC copper tubes in "Eye to Sky" (Jumbo) form as per customer request. The tube is cleaned with Nitrogen purging. Moreover to protect the tubes against dust & internal oxidation during transportation or long storing, the tube ends are sealed with plastic caps

Technical Specification :
  • Specification: O.D: 3/16" to 3/4" (4.76 to 19.05 mm)
  • Coil Weight: 100-400 Kg
  • Application: Applied to the Air Conditioner, the Assembly Type Air Conditioning Unit, Refrigerator, Freezer, Chest, etc.


PANCAKE COPPER (PCC) TUBES


Pancake Copper (PCC) Tubes are widely used material in so many industries, commercial purposes etc. Copper has ductility features, and it also protects from natural corrosion resistance. Our manufactured Copper Tube Pan Cake Coil can easily be used in refrigeration, air conditioning, electrical application, solar application, and other general engineering purposes. Copper provides excellent ductile property and has the strength to work for extended-lasting usage.

Technical Specification :
  • OD: It ranges from 4.0mm to 25.4mm
  • Thickness: 0.40mm onwards
  • Coil Weight: Available in 80kg – 100kg – 150kg – 200kg – 250kg – 300kg – 500kg
  • Remarks: Phosphorus Deoxidized Copper Oxygen Free Copper


COPPER PIPES AND TUBES FOR ACR APPLICATION

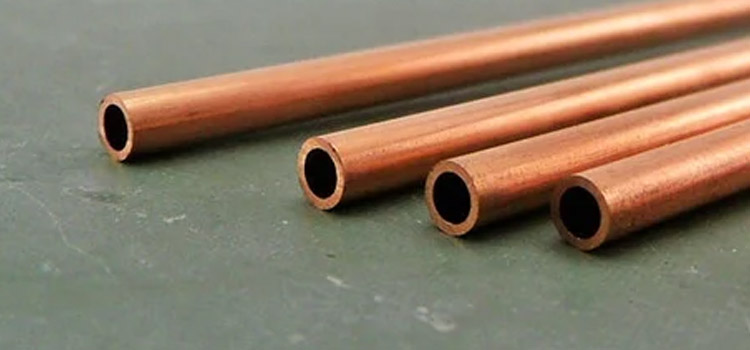

These tubes are manufactured as per International and National Standards required by client. All tubes are electronically tested by Eddy Current method, as per the requirements of ASTM E 243. Indigo tubes are 100% carbon free. All tubes are cleaned and sample tested to meet the residual requirements as specified by the codes at 0.038g/m2 (0.35g/ft2). Coils are normally furnished in ‘O60’ temper and straight lengths in H58 temper. 100% RoHS Compliance.

Technical Specification :
  • Specification: ASTM B68 / ASTM B75 / ASTM B88 / ASTM B280 / JIS H 3300 / EN1057 or BS2871: PART 2:1972 / DIN 1754/8905/ IS2501 / Internal Client Specifications.
  • Size: 1/8” (3.2mm) OD to 13/8” (34.9mm) OD in Coil Form & 2mm OD to 41/8” (104.8mm) OD in Straight Length
  • Standard Length: 50 Feet/100 Feet in Coil Form & 6 Meters in Straight Length. Also as per client requirements
  • Thickness: 10SWG (3.2mm) to 27SWG (0.4mm)
  • Temper: "O" (Soft Annealed)/ H58 (Drawn General Purpose) Temper
  • Application: ACR, Instrumentation, Railways, General Engineering etc


MEDICAL GRADE COPPER PIPES


Each product conforms to ASTM B-280/B-819 specifications, is specially cleaned, de-burred, purged and pressurized with nitrogen gas, and features easy to remove, installer friendly, rubber plugs. Indigo Metalloys uses modern and environment friendly aqueous degreasing system to achieve the ASTM B 280 cleanliness limit of less than 0.0035 g/sq. ft on interior surfaces. 100% RoHS Compliance.

Particularization Should Be Given To:
  • Site Cleaning of tubes and components.
  • Pipeline gas purging during brazing.
  • Use of approved filler metals and fluxes.
  • Post brazing cleaning and visual inspection of all joints.
  • Full compliance with pressure and containment testing, before final approval and use.

    • SPECIFICATION
    Actual tube size Safe Working Pressure (kPa)
    OD OD Wall Nominal Service Temperature(0C)
    Thickness tube
    (inches) (mm) (mm) mass 50 55 60 65 70 75
    (kg/6m)
    3/16" 4.76 0.71 0.48 12715 12280 11845 11410 10980 10545
    1/4" 6.35 0.71 0.68 9175 8860 8550 8235 7920 7610
    6.35 0.81 0.76 10635 10270 9910 9545 9180 8820
    6.35 0.91 0.83 12140 11730 11315 10900 10485 10070
    5/16" 7.94 0.81 0.97 8290 8005 7725 7440 7160 6875
    7.94 0.91 1.08 9430 9110 8790 8465 8145 7820
    3/8" 9.52 0.71 1.05 5900 5700 5495 5295 5095 4895
    9.52 0.81 1.19 6800 6570 6335 6105 5870 5640
    9.52 0.91 1.32 7720 7455 7190 6930 6665 6400
    ½" 12.7 0.71 1.44 4345 4195 4050 3900 3750 3605
    12.7 0.81 1.62 4995 4825 4655 4480 4310 4140
    12.7 0.91 1.81 5655 5460 5270 5075 4880 4685
    5/8" 15.88 0.81 2.06 3945 3810 3675 3540 3405 3270
    15.88 0.91 2.3 4460 4310 4155 4000 3850 3700
    15.88 1.02 2.56 5030 4860 4690 4515 4345 4170
    3/4" 19.05 0.91 2.78 3600 3475 3355 3230 3110 2985
    19.05 1.02 3.1 4150 4010 3230 3725 3585 3445
    19.05 1.14 3.44 4670 4510 4350 4190 4030 3870
    7/8" 22.22 0.91 3.27 3140 3030 2925 2815 2710 2600
    22.22 1.22 4.32 4265 4120 3970 3830 3680 3535
    22.22 1.4 4.91 4930 4760 4595 4425 4255 4090
    22.22 1.63 5.66 5795 5600 5400 5205 5005 4805
    1" 25.4 0.91 3.76 2730 2640 2545 2450 2360 2265
    25.4 1.22 4.97 3705 3580 3450 3525 3200 3070
    25.4 1.63 6.53 5025 4855 4685 4510 4340 4170
    1/8" 28.58 0.91 4.25 2420 2335 2255 2170 2090 2005
    28.58 1.22 5.63 3275 3165 3050 2940 2830 2715
    28.58 1.63 7.41 4435 4285 4135 3980 3830 3680
    28.58 1.83 8.25 5015 4845 4670 4500 4330 4160
    1.1/4" 31.75 0.91 4.73 2170 2095 2025 1950 1875 1800
    31.75 1.22 6.28 2935 2835 2735 2635 2535 2435
    31.75 2.03 10.17 5005 4835 4665 4495 4325 4150
    1 3/8" 34.92 0.91 5.22 1970 1900 1835 1770 1700 1635
    34.92 1.22 6.93 2660 2570 2480 2390 2300 2210
    34.92 2.03 11.26 4525 4370 4220 4065 3910 3755
    1½" 38.1 1.22 7.59 2435 2350 2265 2185 2100 2020
    38.1 2.29 13.83 4690 4530 4370 4210 4050 3890
    1 5/8" 41.28 0.91 6.19 1660 1605 1545 1490 1435 1375
    41.28 1.22 8.24 2240 2165 2090 2010 1935 1860
    41.28 2.41 15.79 4550 4390 4235 4080 3925 3770

    Dimensions and Physical Characteristics of Copper Tube: Medical Gas, K and L

    Nominal or Standard Size, inches Nominal dimensions, inches Calculated values (based on nominal dimensions)
    Outside diameter Inside diameter Wall thickness Cross sectional area of bore, sq. inches Internal surface, sq. ft. per linear ft. Weight of Tube only, pounds per linear ft. Contents of tube, cu. ft. per linear ft
    42461 K 0.375 0.305 0.035 0.073 0.0789 0.145 0.00051
    L 0.375 0.315 0.03 0.078 0.0825 0.126 0.00054
    42585 K 0.5 0.402 0.049 0.127 0.105 0.269 0.00088
    L 0.5 0.43 0.035 0.145 0.113 0.198 0.00101
    42401 K 0.625 0.527 0.049 0.218 0.13 0.344 0.00151
    L 0.625 0.545 0.04 0.233 0.143 0.285 0.00162
    42587 K 0.75 0.652 0.049 0.334 0.171 0.418 0.00232
    L 0.75 0.666 0.042 0.348 0.174 0.362 0.00242
    42463 K 0.875 0.745 0.065 0.436 0.195 0.641 0.00303
    L 0.875 0.785 0.045 0.484 0.206 0.455 0.00336
    1 K 1.125 0.995 0.065 0.778 0.261 0.839 0.0054
    L 1.125 1.025 0.05 0.825 0.268 0.655 0.00573
    37987 K 1.375 1.245 0.065 1.222 0.326 1.04 0.00845
    L 1.375 1.265 0.055 1.26 0.331 0.884 0.00873
    37257 K 1.625 1.481 0.072 1.72 0.388 1.36 0.012
    L 1.625 1.505 0.06 1.78 0.394 1.14 0.0124
    2 K 2.125 1.959 0.083 3.01 0.522 2.06 0.0209
    L 2.125 1.985 0.07 3.09 0.52 1.75 0.0215
    37258 K 2.625 2.435 0.095 4.66 0.638 2.93 0.0323
    L 2.625 2.465 0.08 4.77 0.645 2.48 0.0331
    3 K 3.125 2.907 0.109 6.64 0.761 4 0.0461
    L 3.125 2.945 0.09 6.81 0.761 3.33 0.0473
    37259 K 3.625 3.385 0.12 9 0.886 5.12 0.0625
    L 3.625 3.425 0.1 9.21 0.897 4.29 0.064
    4 K 4.125 3.857 0.134 11.7 1.01 6.51 0.0811
    L 4.125 3.905 0.11 12 1.02 5.38 0.0832
    5 K 5.125 4.805 0.16 18.1 1.26 9.67 0.126
    L 5.125 4.875 0.125 18.7 1.28 7.61 0.13
    6 K 6.125 5.741 0.192 25.9 1.5 13.9 0.18
    L 6.125 5.854 0.14 26.8 1.53 10.2 0.186
    8 K 8.125 7.583 0.271 45.2 1.99 25.9 0.314
    L 8.125 7.725 0.2 46.9 2.02 19.3 0.325
